Problem-driven opening: why this matters now

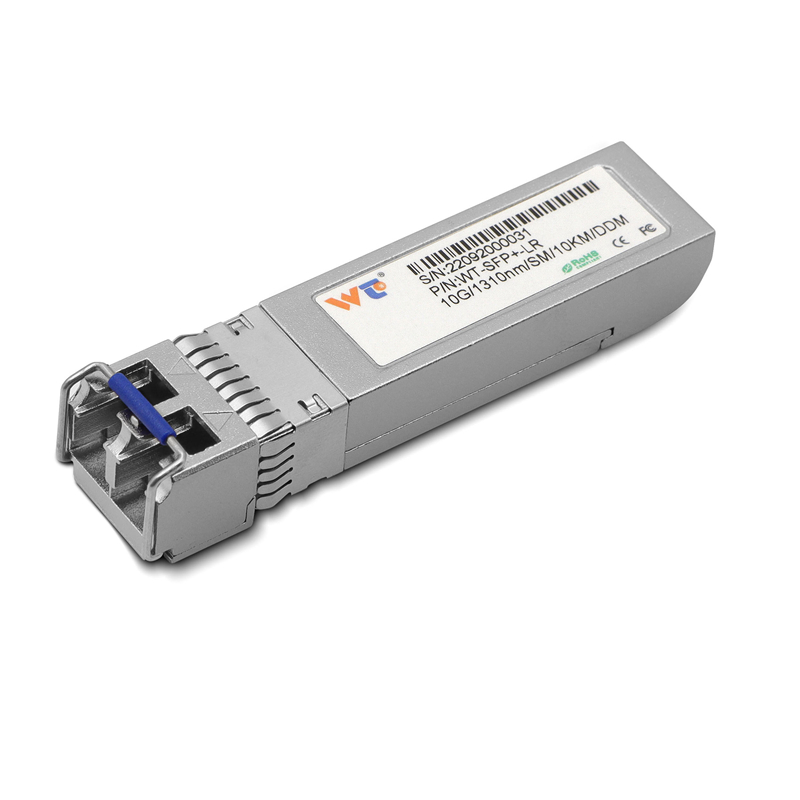

Persistent camera dropouts and power sequencing failures are the silent killers of remote surveillance uptime; the fix usually sits at the fiber-to-PoE junction. Large installations — think airport perimeters and municipal CCTV grids like those deployed at Heathrow and major transit hubs — moved to hardened fiber backbones to reduce electromagnetic interference and extend reach, which changed the failure modes. When you stitch copper PoE to fiber optics, a few settings and a mismatched transceiver can create intermittent blackouts. If you’re standardizing on 10G links, a reliable 10g sfp+ transceiver at the media-converter edge is a basic non-negotiable.
Core components and topology to lock down
Keep the stack simple but explicit: fiber runs with SFP+/SFP modules, a managed switch supporting PoE++ or PoE+, and a media converter with per-port power monitoring. Key industry terms to track: PoE, SFP+, MTU. For remote sites, use single-mode fiber for distance and multimode only inside short campus hops. Plan VLAN segregation for camera VLANs and tag them end-to-end to avoid broadcast bleed. During lab teardown I logged {main_keyword} parameters alongside link stats to map failures to config drift.
Step-by-step configuration checklist
Apply these concrete steps on a live buildout. 1) Confirm transceiver compatibility and LC connector cleanliness; optical mismatch is the top cause of CRCs. 2) Set the media converter to fixed link speed (no auto-negotiation) when bridging to SFP+ uplinks to avoid flapping. 3) Allocate PoE budget per port and enable power-limiting thresholds; document PD (powered device) draw. 4) Pin down VLAN tagging on the converter management plane and the aggregation switch. 5) Adjust MTU if you carry metadata or long packets from cameras — align MTU across the whole path. I cross-checked {variation_keyword} values on three sample converters while mapping packet loss versus power cycling to produce a repeatable baseline.
Common mistakes and how to avoid them
Operators trip over a few reproducible errors: wrong SFP+/transceiver class, insufficient PoE budget, and inconsistent VLAN/MPLS settings. A subtle but frequent issue is leaving link aggregation misconfigured — cameras with dual-stream setups expect symmetric paths. — Also, firmware drift on converters creates oddities; log firmware versions and upgrade groups together. Practical mitigations: use a verified 10g optical transceiver in your builder’s kit, enforce a PoE power-policy template, and run a short acceptance test script for each port: link light, power handshake (LLDP-MED if supported), and sustained video stream for five minutes.
Validation metrics and test plan
Measure three core metrics during commissioning: uptime percentage over 72 hours, packet loss under load, and power stability (variance in mW delivered). Run a synthetic stream at peak bitrate plus 20% overhead to spot MTU or buffering issues. Keep latency logs; end-to-end jitter above 20 ms often correlates to dropped frames. For regression testing after firmware changes, rerun the same script used in initial acceptance — automating it saves time and prevents human error.
Alternatives and trade-offs
If fiber-to-PoE converters look brittle for your ops model, two alternatives exist: 1) extend PoE using powered switches in remote huts (more hardware, simpler fiber link), or 2) use an active Ethernet extender with management plane centralization. Trade-offs are straightforward: simplicity versus central control, capital outlay versus operational clarity. Choose by expected scale and maintenance headcount — small teams favor fewer physical devices at remote sites.
Advisory close: three golden rules for selection
Rule 1: Match module class to link requirements — always pick a certified 10G SFP+ part for 10G trunks and validate it in your lab. Rule 2: Enforce a PoE power policy with per-port limits and logging to prevent cascading outages. Rule 3: Standardize management VLANs and MTU across the entire surveillance fabric so a single change won’t induce asymmetric routing. These metrics give you objective pass/fail gates during rollout and decision points for scaling.
Final thought: when you need predictable, hardened links that carry both power and critical video feeds, the right transceiver and a disciplined configuration workflow remove most surprises — and that’s where WINTOP fits into a pragmatic, production-ready toolkit. —
